MotionHouse MotionGear Haptic4 - Detailed Review

The MotionHouse MotionGear Haptic 4 is a 3DOF motion system that, at first glance, looks surprisingly well-spec’d for its price. With 75mm of travel, Max Speed of 150 mm/s, haptic support up to 400Hz, and a control unit that casually pulls up to 3000W at peak, it’s not shy about throwing big numbers around.

But as always, specs only tell part of the story. The real test is in the driving experience — how well it translates telemetry into motion, incorporates haptic effects, and what it’s like to live with!

In this review, we’ll take a deep dive into the experience of using the Haptic 4, break down what it gets right, what it doesn’t, and see how it stacks up against other motion systems we’ve spent extensive time with — including the D-Box G5, Sigma DK2+, and Qubic QS-220-PL.

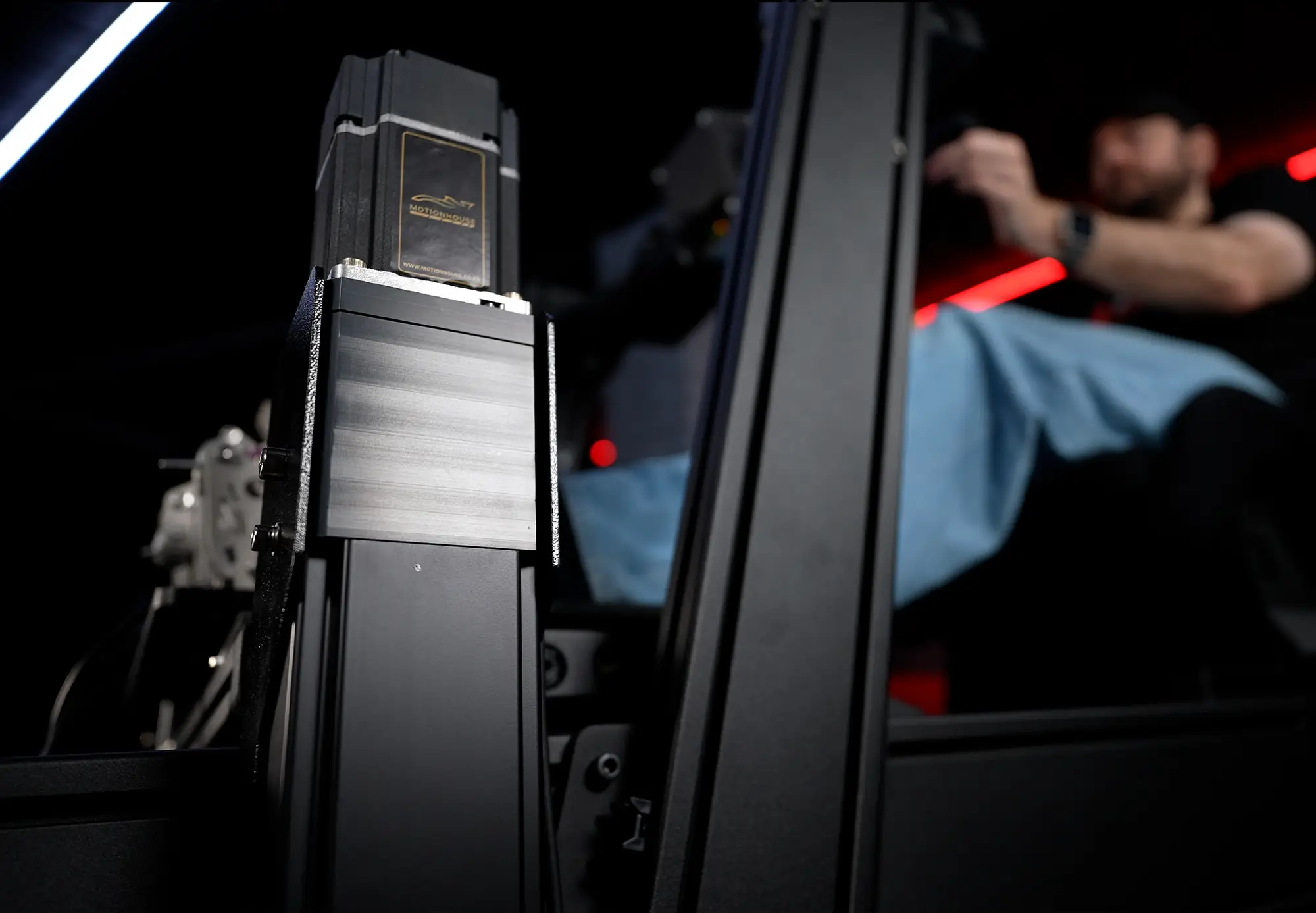

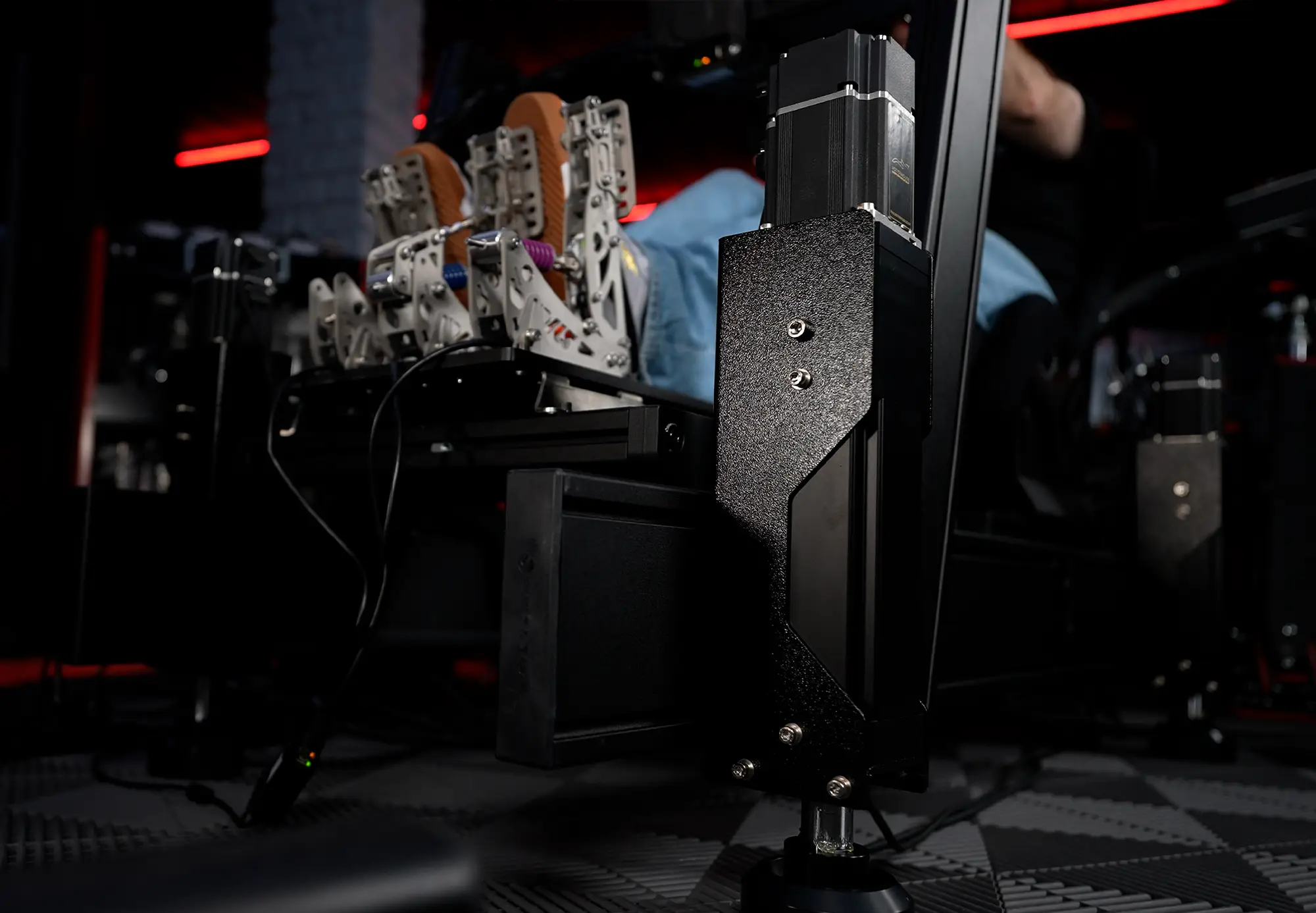

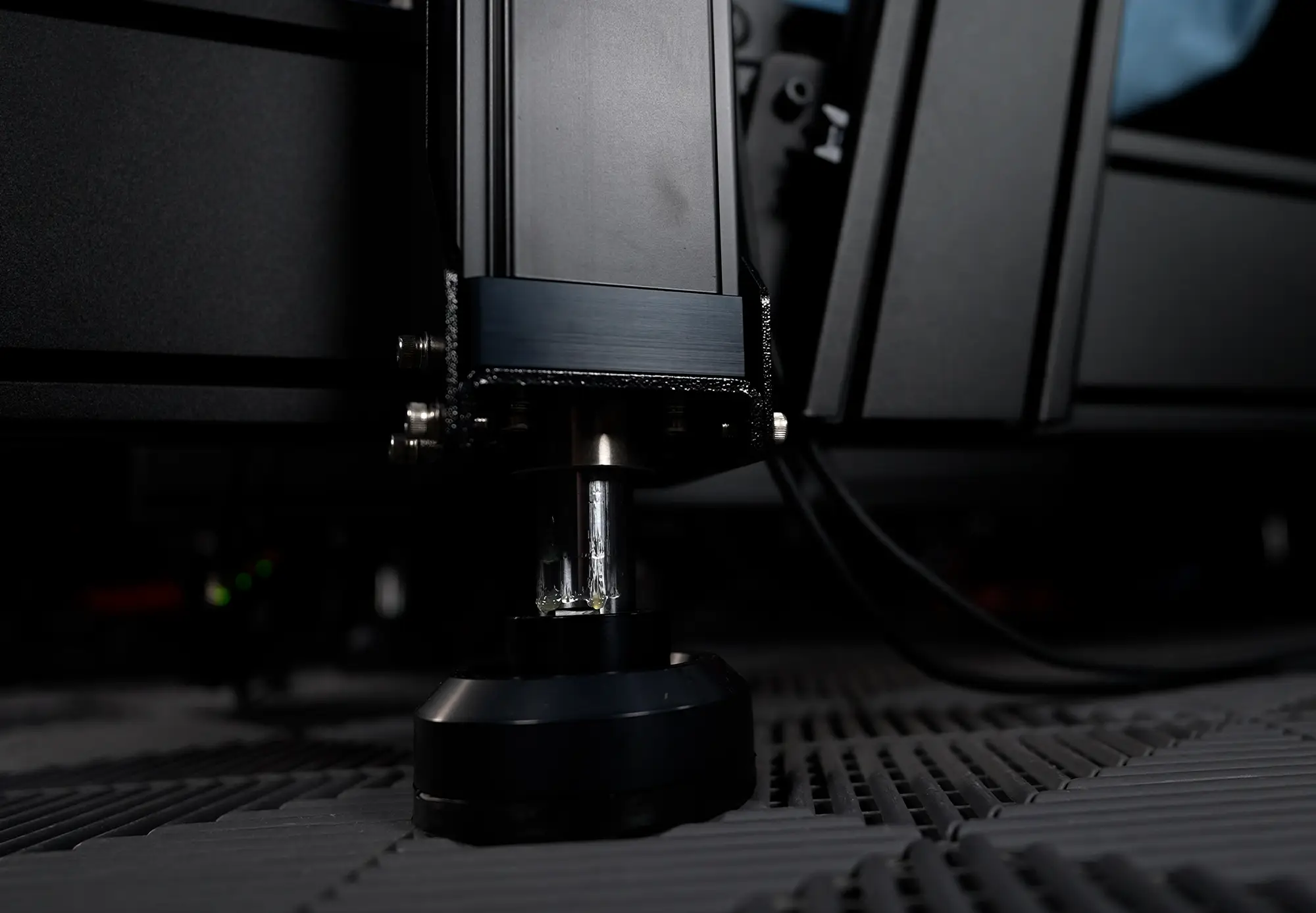

Installing the actuators onto a compatible full-frame rig is relatively straightforward. The mounting hardware is solid, and the system integrates cleanly from a mechanical standpoint.

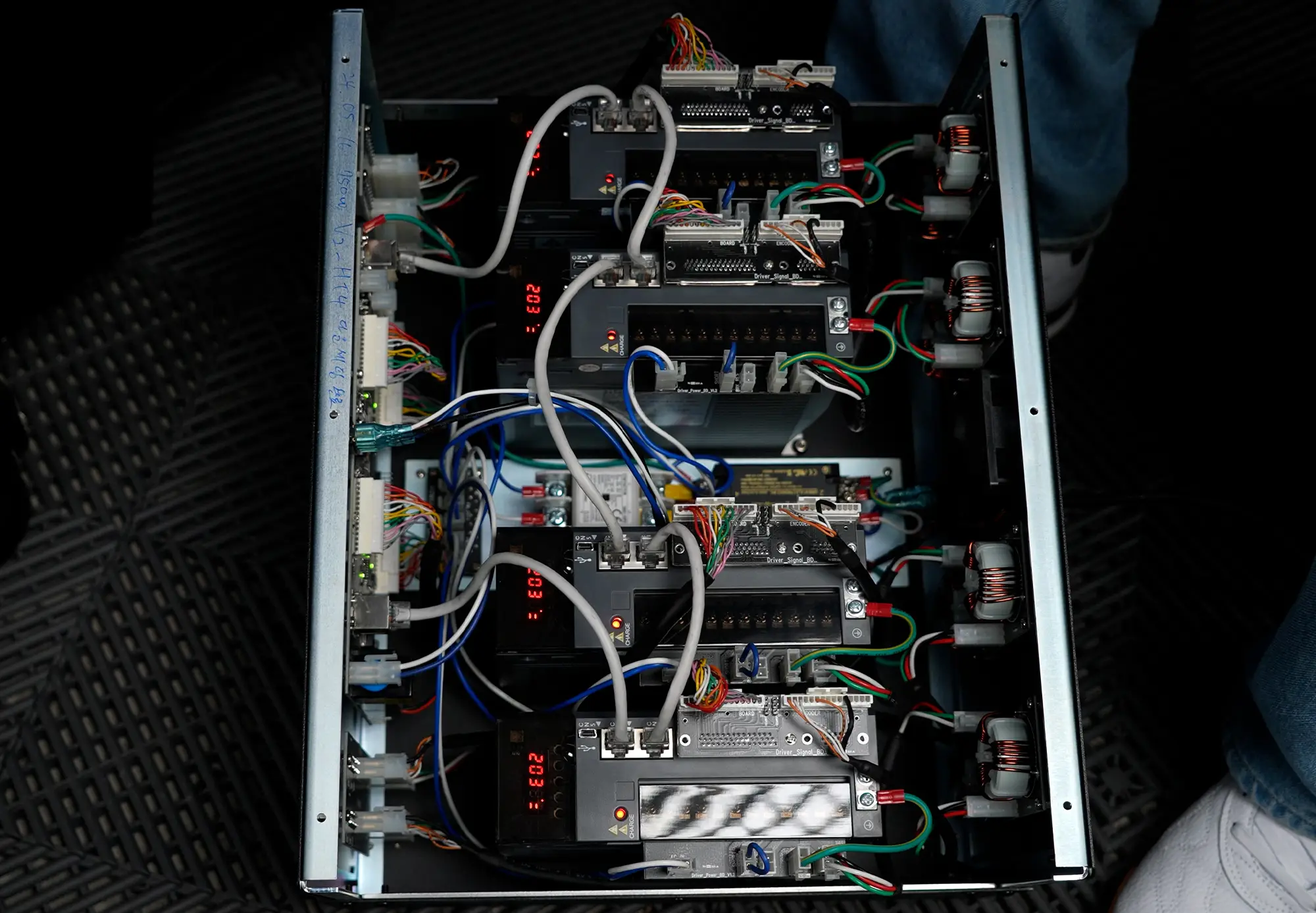

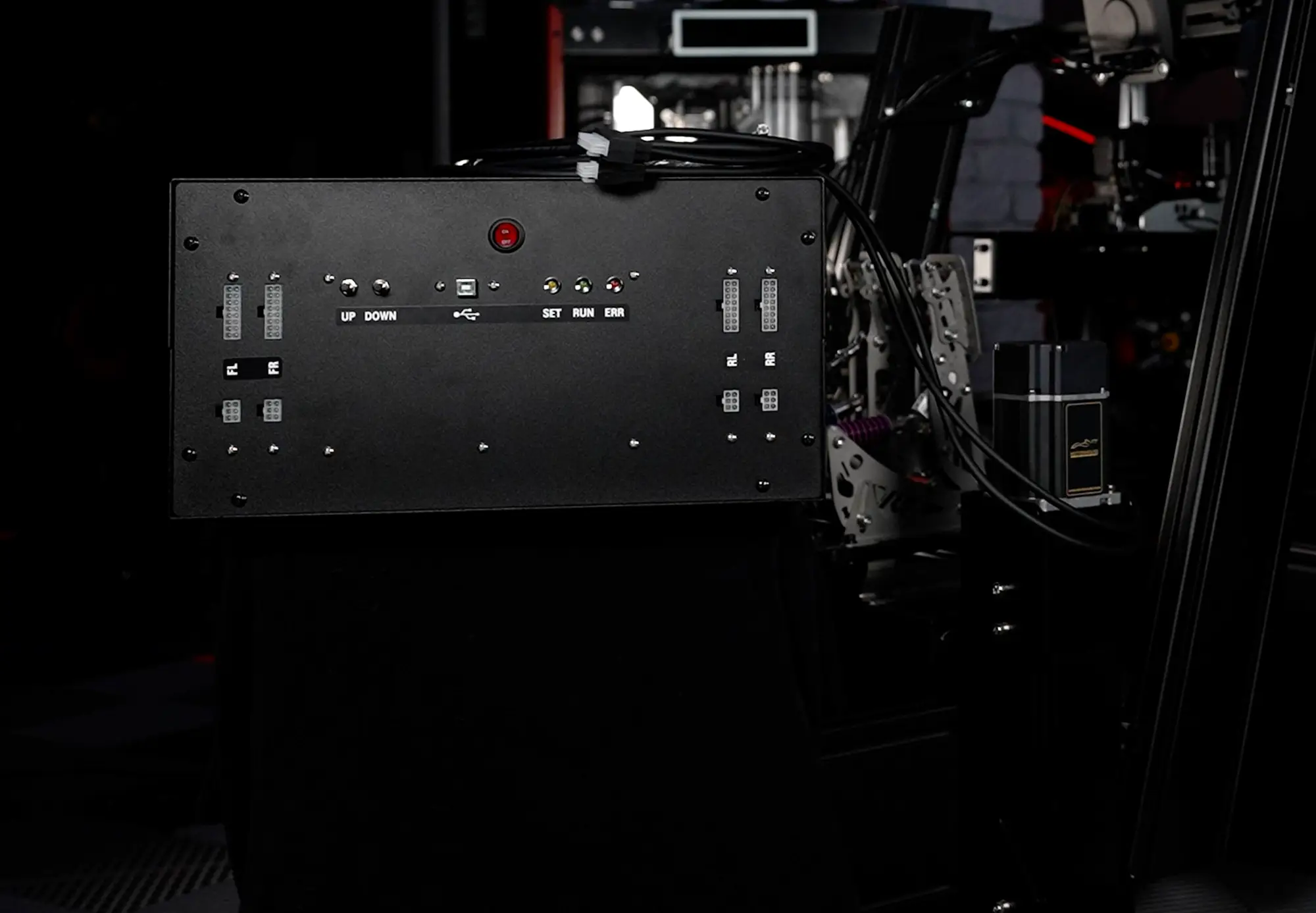

Where things get trickier is the control box. It’s large, heavy, and doesn’t include any mounting solution — which means it’ll likely live on the floor or require custom accommodation. This isn’t a dealbreaker, but it does add complexity if you’re aiming for a clean and compact install.

Cable lengths are good, but there’s little in the way of integrated cable management. It’s all functional, but not especially refined.

It’s also worth noting that the actuator positioning must follow a fixed geometry. Unlike some systems that let you input dimensions in software and dynamically adapt motion calculations, the Haptic4 expects a set layout. Deviate from that and performance can suffer — so it’s important to get the mechanical install right the first time.

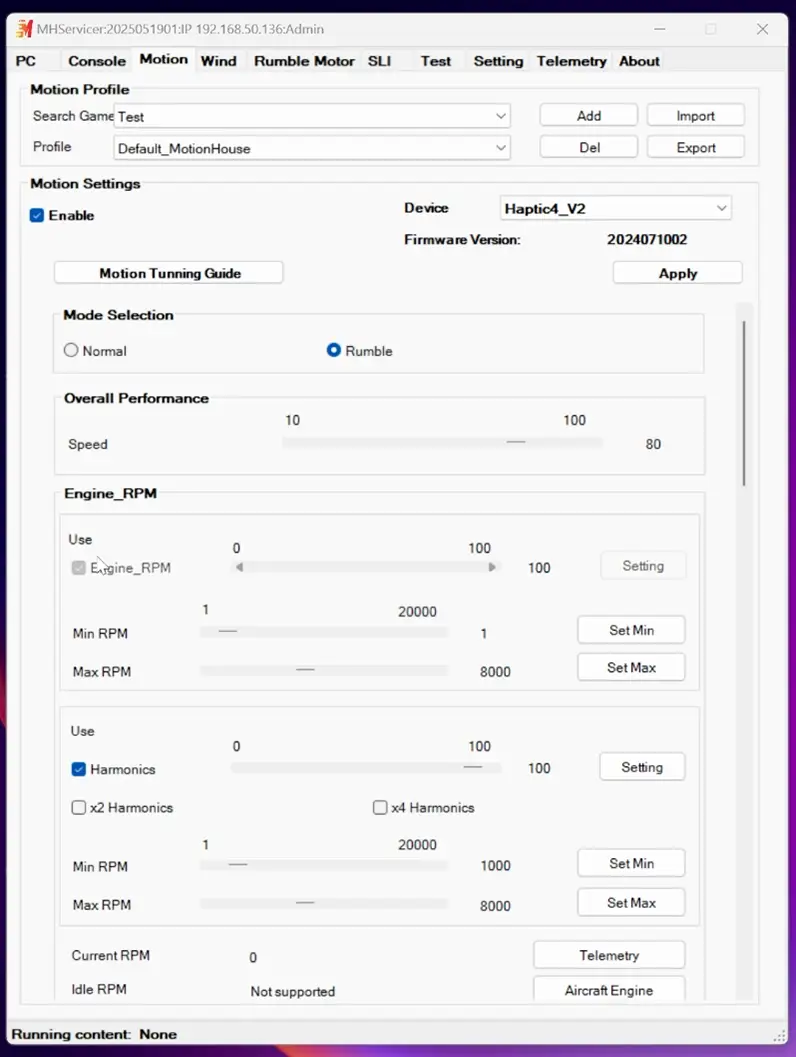

The MotionGear Haptic4’s dedicated control application is functional and fairly intuitive once you’re familiar with the workflow. The UI won’t win any design awards, but it’s responsive, stable, and offers a deep level of tuning capability — especially when it comes to fine-tuning motion cues and haptic effects independently.

Each motion axis and haptic channel can be configured with impressive granularity, allowing you to tailor the experience not just to your rig, but to your preference across different sims. You can set limits, scale response curves, and mix motion and vibration in a way that rivals more expensive systems.

Still, software maturity could improve. An overall “early access” feel holds it back from being truly intuitive, especially for first-time users. But for enthusiasts willing to experiment, there’s significant depth on offer.

One of the most surprising strengths of the MotionGear Haptic4 is its ability to deliver highly detailed and natural-feeling haptic feedback — all through the same actuators used for motion. The system supports vibration output up to 400Hz, which allows for crisp, high-frequency effects that meaningfully enhance immersion.

Importantly, the Haptic4 doesn’t rely solely on telemetry-based feedback. It includes a number of canned effects — such as ripple strip vibrations and ABS pulses — which are triggered on/off based on game state, rather than continuous telemetry input. This approach won’t suit every purist, but in practice, these effects are implemented well and add valuable tactile cues that help bridge the gap between what you see, hear, and feel.

Despite being routed through the same actuators as the motion cues, these haptic effects remain clear and distinct. Surface texture, kerbs, and engine vibration are all rendered with convincing sharpness. The clarity here rivals (and in some cases exceeds) what you’d get from dedicated transducer setups — and at a significantly lower cost and complexity.

The software allows for independent tuning of haptic and motion effects, so you can find a balance that feels right for your preference and sim title.

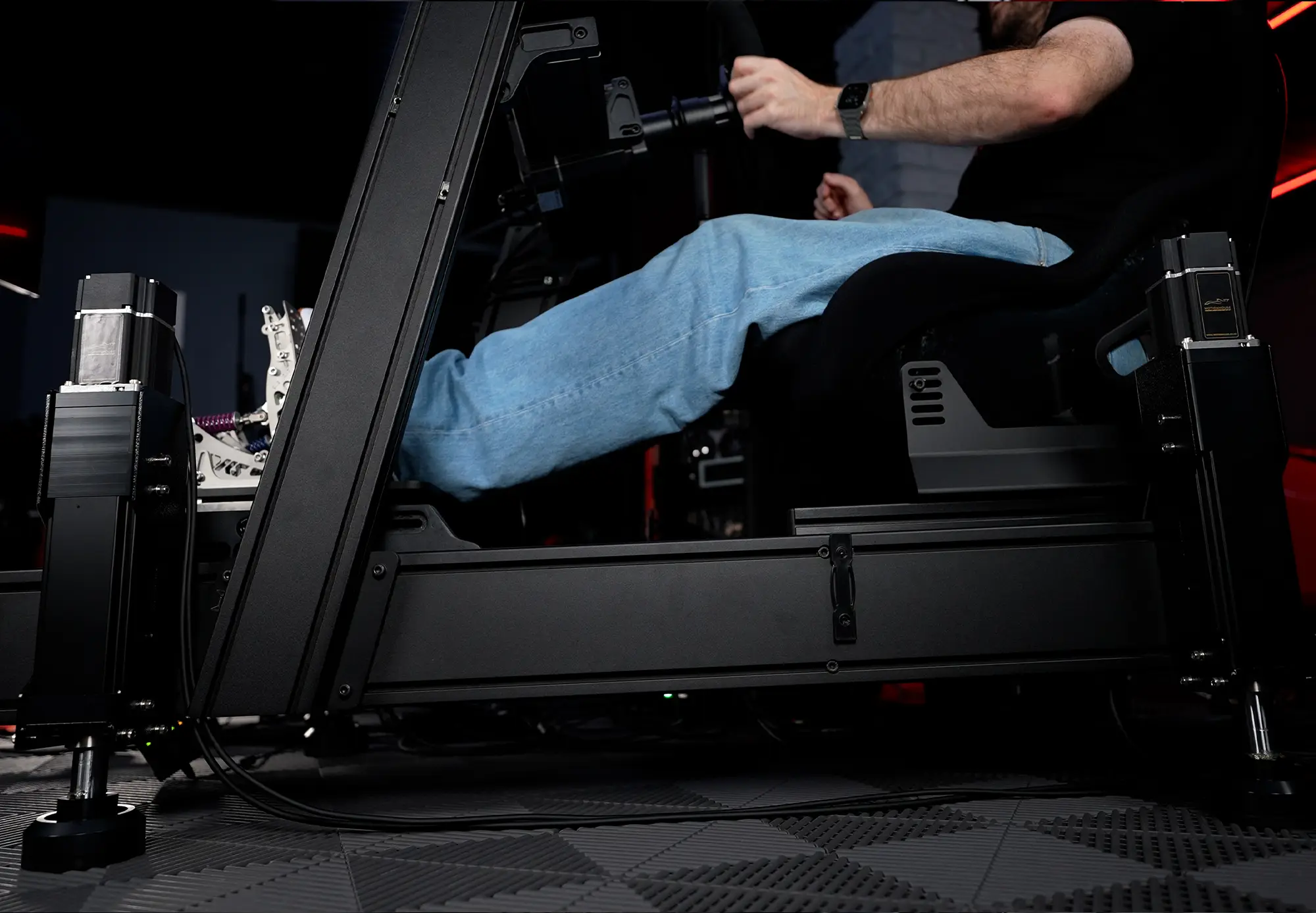

When it comes to core motion performance, the Haptic4 delivers a convincing and generally natural-feeling driving experience. The system’s 75mm of actuator travel and 150mm/s max speed provide enough range and responsiveness to convey weight transfer, suspension movement, pitch, roll, and heave with clarity.

The motion itself is clean and well-isolated. There’s no noticeable mechanical slop, no unintended movement from actuator flex, and transitions between motion cues are smooth — especially once properly tuned. It’s not as nuanced or dynamically rich as higher-end setups like the D-Box G5 or Sigma DK2+, but within its price bracket, it holds its own impressively well.

What’s particularly commendable is how well it balances forcefulness with subtlety. You can feel elevation changes and chassis yaw in a way that enhances immersion without feeling overdone or artificial. Even under rapid direction changes, the system doesn’t bottom out or get caught up in inertia.

It does lack some of the more advanced motion blending and predictive logic seen in premium platforms, and the default profiles benefit from user refinement. But the foundation is strong — and with the right tuning, the Haptic4 delivers a high-quality motion experience that genuinely adds to the sim racing experience.

Despite its industrial control box and limited install flexibility, the system as a whole performs confidently. Motion is smooth, responsive, and impactful. The integrated haptics are clear, fast, and add to the driving experience impressively well for a system in this price range.

It’s not perfect. The fixed actuator spacing, large power-hungry control box, and 240V-only power input mean it’s not plug-and-play for every sim rig or region. And while the software is powerful, it still feels like it’s aimed at tinkerers rather than casual users.

But the payoff is real. If you’re prepared to work around its rough edges, the Haptic4 offers motion and haptics that rival systems costing significantly more — and it does so with the kind of mechanical confidence that makes you forget you’re using “budget” hardware.
