PC Mid‑Range Sim Racing Build
Spend Where It Actually Makes a Difference
The PC Mid-Range build centres around the Simagic Alpha Evo Pro at 18Nm, paired with Simagic P1000 pedals and the FX Pro Formula wheel. This is the tier where you get the majority of what high-end sim racing hardware can offer, before the upgrade path starts to shift into diminishing returns—where small gains in feel and refinement cost a disproportionate amount more.
Staying within the Simagic ecosystem delivers maximum bang for buck. You get a strong, mature platform with native wheel compatibility, a clear pedal upgrade ladder, and the option to integrate third-party wheels via Simagic’s Quick Release solution if you want to mix things up later.
wheelbase:

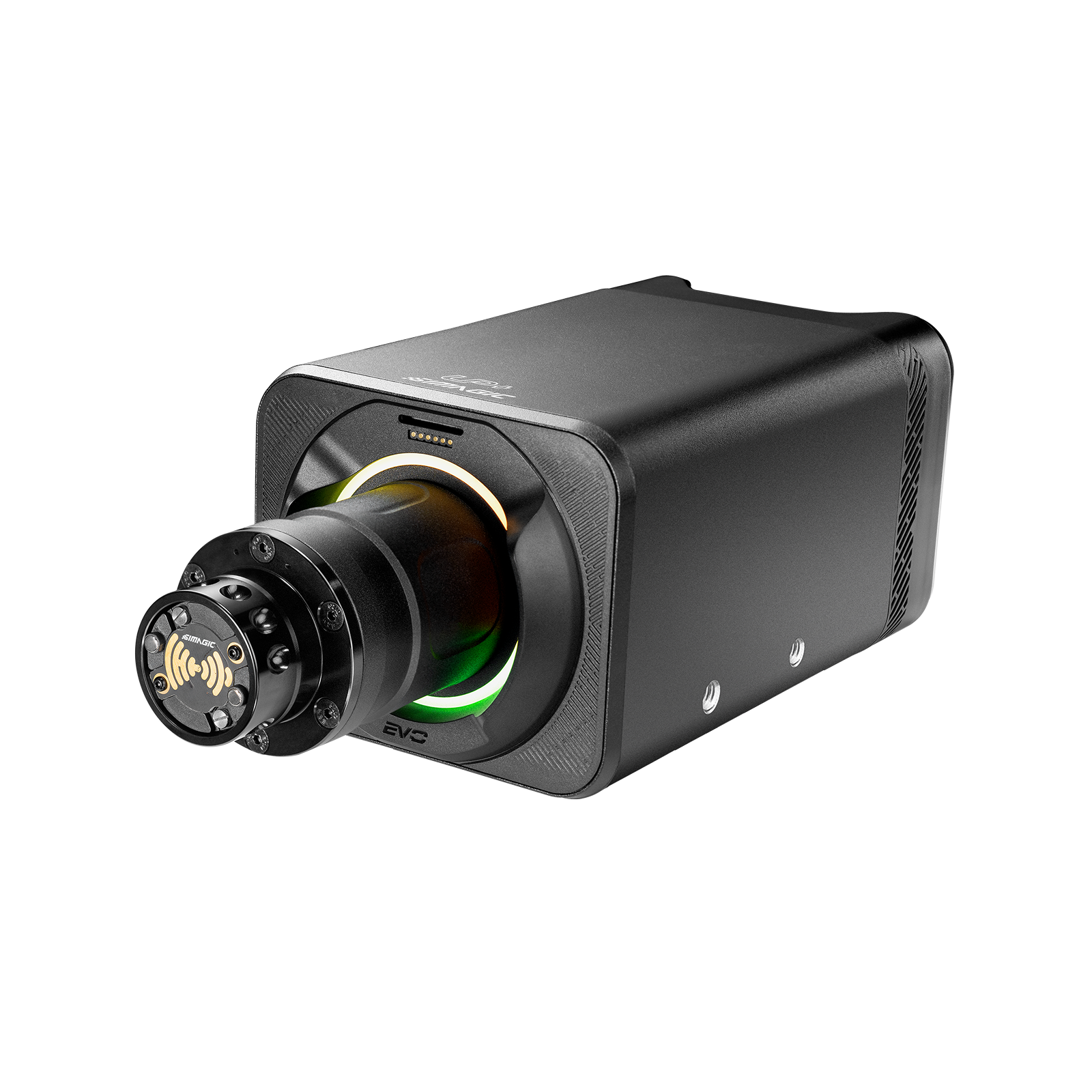

Simagic Alpha Evo Pro
The Alpha Evo Pro is Simagic’s 18Nm current flagship in the Evo lineup, and it’s hard to ignore purely on value. At US$699, it undercuts most comparable high-torque bases. After extensive testing and comparisons, it tops the charts for best value for money on our Direct Drive Wheelbase Comparison Chart, with the Pro working out to be $38.83 per Nm.
On the driving side, all Alpha Evo models use custom 5-pole servo motors with low inertia, and the result is a smooth, refined feel that you’d expect from more expensive bases.
Where the Pro differentiates itself isn’t just strength. We found it offers slightly improved responsiveness and more intuitive behaviour in situations like catching slides and controlling drifts—subtle, but noticeable if you’re pushing the car around at the limit.
Build quality is also stronger than the price suggests, with a cast aluminium housing, quiet operation, and a slip ring design that supports USB passthrough with their Quick Release adaptor. The one annoyance is the integrated front mount is gone (now an add-on), but overall construction is consistent across the range and surpasses expectations for this price bracket.
Simagic Alpha Evo Pro
Current Price
- 18Nm Direct Drive Wheelbase
- USB Passthrough from optional QR Adaptor
Pedals:

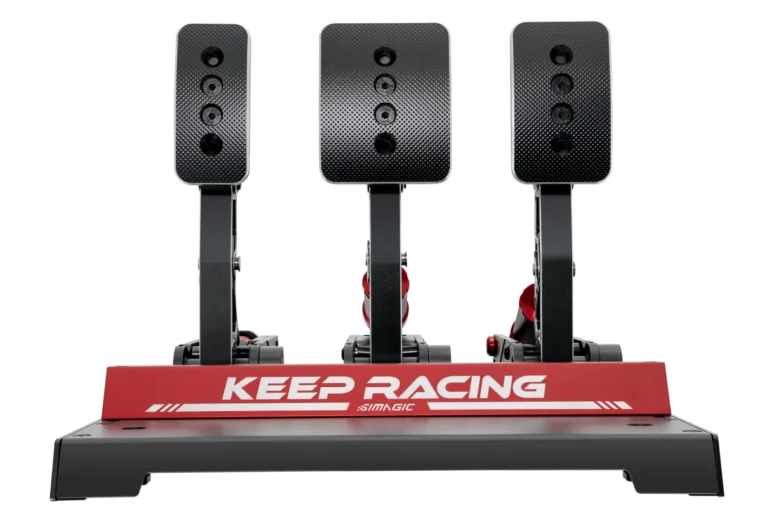

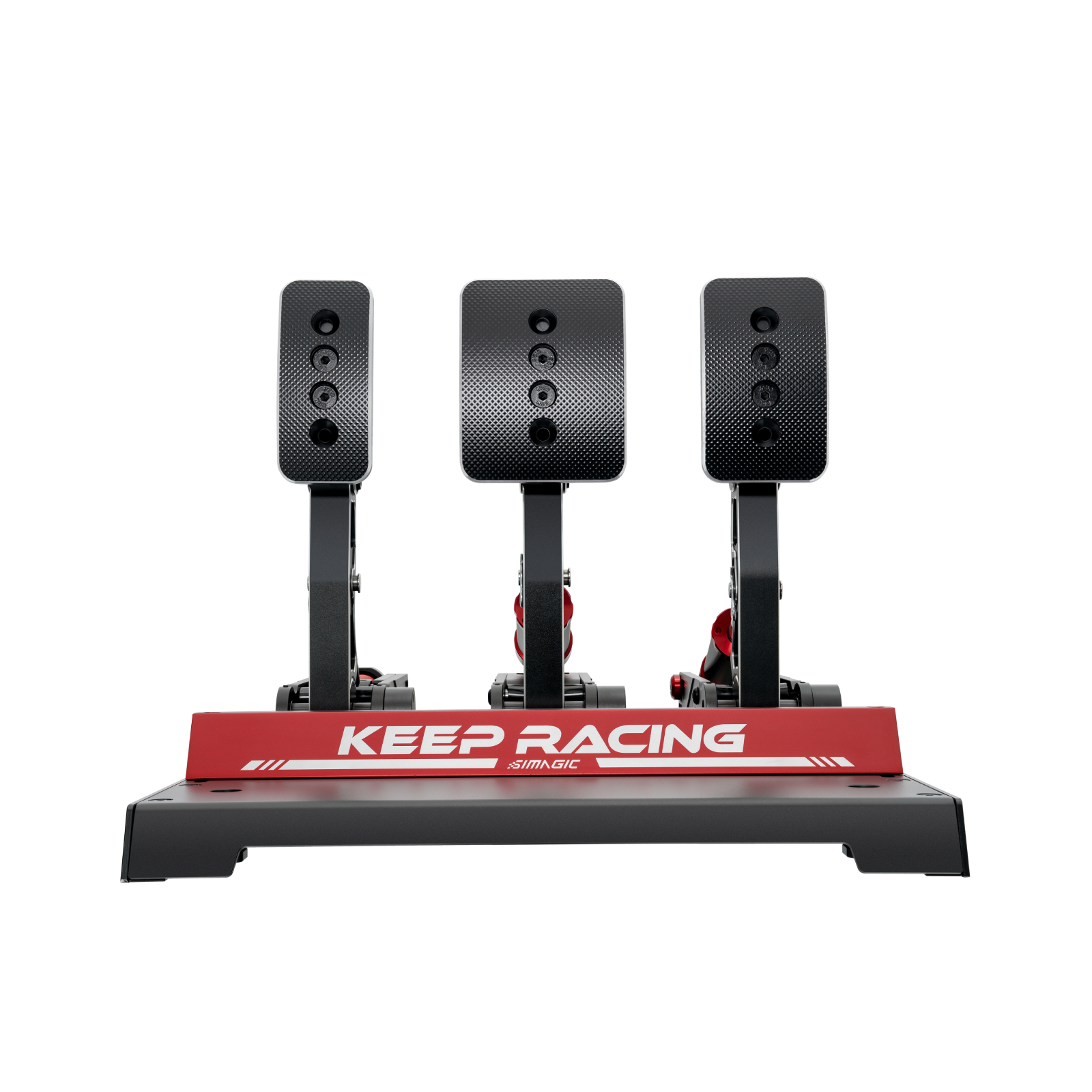

Simagic P1000
The P1000 pedals are popular for a reason: out of the box they offer very smooth, precise pedal action, strong adjustability, and they integrate cleanly within the Simagic software.
From a technical standpoint, the brake is built around an elastomer stack, and Simagic includes enough elastomer options to meaningfully change the character of the pedal without needing aftermarket parts. If you want to push the brake feel further, the optional performance kit expands that tuning range again — and it’s one of the more worthwhile upgrades in the ecosystem because it gives you more usable combinations to fine tune the pedal feel, rather than just “stiff or soft.”
The upgrade ladder goes further: hydraulic brake and throttle systems, haptic pedal reactors, and even lighting accessories are all available if you want to keep evolving the set instead of replacing it.
The brake pedal utilizes both a load cell and angle sensor which is important in the case of this elastomer stack. It allows you to prevent a sharp drop in signal output as the elastomers relax after a heavy compression, ensuring you hit your braking thresholds perfectly every time.
For this PC Mid-Range build, the P1000 makes sense because it delivers a very strong core experience out of the box, with optional upgrades later. As with the wheelbase, this is the point where spending more starts to move firmly into diminishing returns.
Simagic P1000
Current Price
- 3 Pedal Set
- Includes Base Plate
- Extensive adjustability
- Ultra smooth and quiet operation
- Upgrade options (Haptics/Hydraulic/RGB)
Steering Wheel:

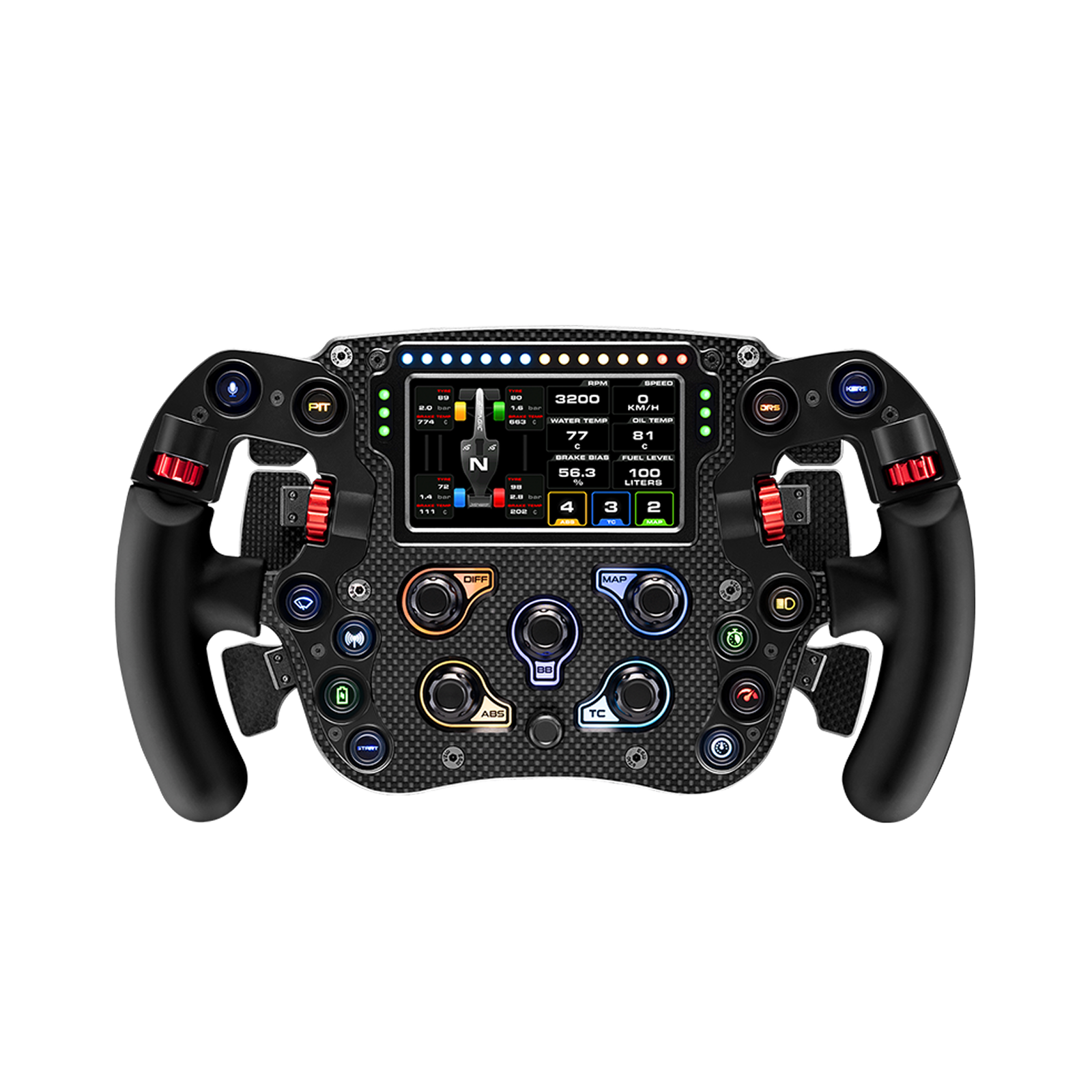

Simagic FX Pro Formula
Current Price
- 290mm formula-style wheel diameter
- Carbon fibre body construction
- Silicone grips
- 12 RGB buttons
- 5 rotary encoders
- 4 thumb encoders
- 7-way multi-position switch
- RGB lighting
- Six Hall-effect paddle modules
COCKPIT Considerations:
Which cockpit or mounting solution you go for will depend on your personal situation significantly, and the best value option for you could be heavily influenced by shipping costs. So with that in mind, here are some consideration for making the decision.
WHEELSTAND:
For the lower end of Direct Drive Wheelbases, most quality wheel stands will handle the torque levels without issue, but rigidity is still key. Any flex in the stand will reduce detail and overall feel, especially if you upgrade to a load cell brake or stronger wheelbase.
A good wheel stand is a practical steppingstone, but if you plan to stay in the hobby long term, a full cockpit will always deliver the best overall experience at the cost of a much bigger footprint.
At the end of the day, the best option is the one you are most likely to get out and use often, without having to jump through hoops to fire it up for a quick drive.
With the strength and weight of a Simagic Alpha Evo Pro, stepping up to a full cockpit is likely a worthwhile expense.
Fold-Out Cockpits
Fold-out cockpits are designed around convenience. They are ideal if space is limited and you need something that can be packed away when not in use. For lower torque wheelbases, they can work well, but once you move into stronger Direct Drive systems and load cell pedals, flex can become noticeable.
They are a clear step up from a desk or basic wheel stand in terms of driving position, but they are still a compromise. The main advantage is practicality. If it folds away easily and gets used more often, that matters.
Next Level Racing Go Kart Plus – Detailed Review
Next Level Racing GT Lite Pro Review
Aluminium Profile Cockpits
Aluminium profile rigs are the gold standard for rigidity and adjustability. Built from extruded aluminium sections, they allow near unlimited fine tuning of wheel position, pedal placement, seat mounting, shifter mounts, and accessories.
They are the most future-proof option. If you plan to move to higher torque wheelbases, motion systems, or heavy hydraulic pedals, this is the platform that will handle it without complaint.
The trade-off is size, cost, and permanence. They take up space and are not something you casually move around the house.
At the end of the day, the right cockpit is the one that matches your space, budget, and long-term plans. The more rigid the platform, the more performance you unlock from your hardware.
Sim-Lab P1X Pro Cockpit Review
Next Level Racing F-GT Elite 160 – Review
Advanced Sim Racing ASR-4 Cockpit Review
