Ultimate PC Sim Racing — The Best You Can Buy Today
The Ultimate PC Sim Racing Setup is the best possible hardware with no concern for budget. This is the top of the ladder for people who want the most advanced — and frankly excessive — sim racing rig available on PC. Not because it’s sensible or good value, but because it’s the best.
We eagerly await the Simucube 3 Ultimate, expected in 2026, which will take torque to an absurd 35Nm. But even without it, this setup based around the SC3 Pro at 25Nm represents the most extreme, no-budget approach to PC sim racing that can be assembled today.
Paired with Simucube ActivePedals and my personal pick of ultra-high-end luxury wheels, this is the dream.
wheelbase:
Simucube SC3 Pro
The Simucube SC3 Pro remains my wheelbase choice for the Ultimate Sim Rig build, even with the SC3 Ultimate now in the mix. At 25Nm, it already has more torque than almost anyone realistically needs, but the reason it earns this spot is not just the headline number. It is the way the force feedback combines clarity, smoothness, responsiveness, and composure when you are driving at the limit.
The Pro gives you that final layer of refinement that separates Simucube from most other high-end direct drive bases. It is not a completely different category of experience compared with other excellent wheelbases, but it is a slightly more polished and confidence-inspiring version of the same goal. You can read subtle load changes clearly, catch the onset of oversteer naturally, and attack kerbs without the base feeling sharp or robotic for the sake of it.
This is firmly in diminishing returns territory. You can get extremely good force feedback for a lot less money, and the jump to Simucube is not night and day. What you are paying for is refinement, consistency, build quality, software maturity, and the long-term ownership appeal of a benchmark product. There is also no denying the prestige factor; for many people, Simucube is still the name that carries the most weight in high-end sim racing.
So why not the SC3 Ultimate? Purely from a driving perspective, it is better. It feels sharper, more responsive, and has even more authority, especially over large kerbs where you can feel the car lurch up and settle back down without the base overshooting or losing composure. But it is also more than double the price of the Pro, and it is nowhere near twice as good. At full capability it can even feel a little hyperactive, and while it still feels excellent when turned down, it sits so far beyond the point of diminishing returns that it becomes very hard to justify unless money genuinely means nothing.
That is why the SC3 Pro is the better recommendation here. It gives you the core Simucube 3 experience, with huge headroom, exceptional refinement, and no obvious downside in feel, while avoiding the extreme cost jump of the Ultimate. For a no-compromise PC sim rig that still makes some level of sense, the SC3 Pro is the wheelbase I would build around.
Pedals:
Simucube Active Pedal Ultimate Set
Simucube ActivePedals are the defining feature of this “Ultimate” build, because they completely change what pedals can be. Instead of being locked into a fixed mechanical design (springs, elastomers, hydraulics), pedal feel becomes software-defined. You can dial in travel, resistance, ramp shape, damping, and end-stops exactly how you want them — and then swap profiles per car or category without physically rebuilding the pedal.
For me personally, that profile switching is the real value. Being able to jump between very different cars and have the pedals instantly feel “right” without touching an Allan key is a genuine game-changer, and it’s the sort of advantage you only appreciate once you’ve lived with it.
This build uses a mixed Active/Passive configuration:
Brake: ActivePedal, for the full software-defined feel to perfect your muscle memory and telemetry-driven effects like ABS pulsing and traction control feedback.
Clutch: ActivePedal, because car-specific presets and quickly adjusting bite point behaviour is genuinely great, especially if you drive a variety of manual cars.
Throttle: Passive “co-pilot” pedal, because it has a slightly smoother feel that suits throttle modulation better than an active pedal in this role.
They’re also built to handle serious brake forces (up to 150kg), and because the feel isn’t dependent on consumables like elastomers, you’re not chasing the long-term consistency drift that can creep into conventional pedal stacks over time.
It goes without saying these pedals demand a proper cockpit, solid mounting, and a willingness to spend time setting them up correctly. And while the active feedback is impressive, it isn’t automatically a huge step beyond what you can achieve with well-implemented haptic transducers or cockpit motion. It also doesn’t currently allow pedal feel to evolve naturally through a session with brake fade or a lengthening pedal, and it won’t replace good driving fundamentals.
Lastly, a note on value: I’ve chosen the ActivePedal Ultimate spec here because this is the “best of the best” build. But the ActivePedal Pro delivers essentially the same experience for a fair bit less money, and will make a lot more sense for most people who want ActivePedals without going fully no-budget.
You can also pair an ActivePedal brake with a Throttle and/or clutch from any other brand if you wish to do so.

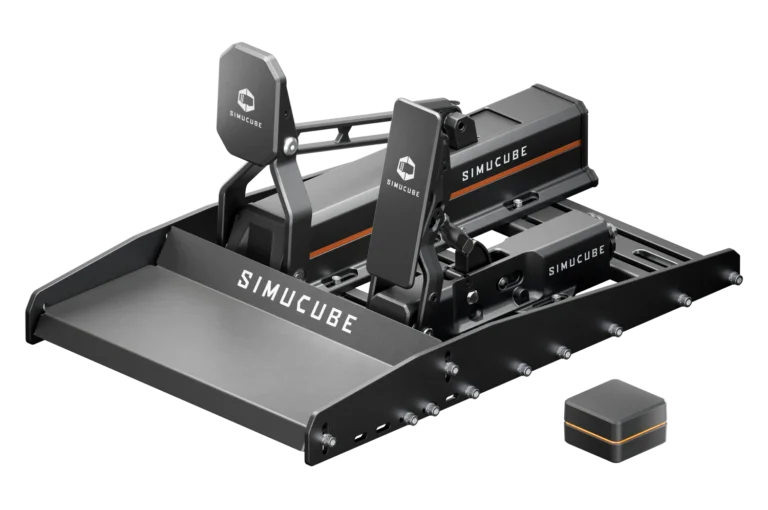

Simucube Active Pedal Ultimate Set
Current Price
- ActivePedal Ultimate Brake
- ActivePedal Ultimate Clutch
- Passive Co-Pilot Throttle
- Baseplate

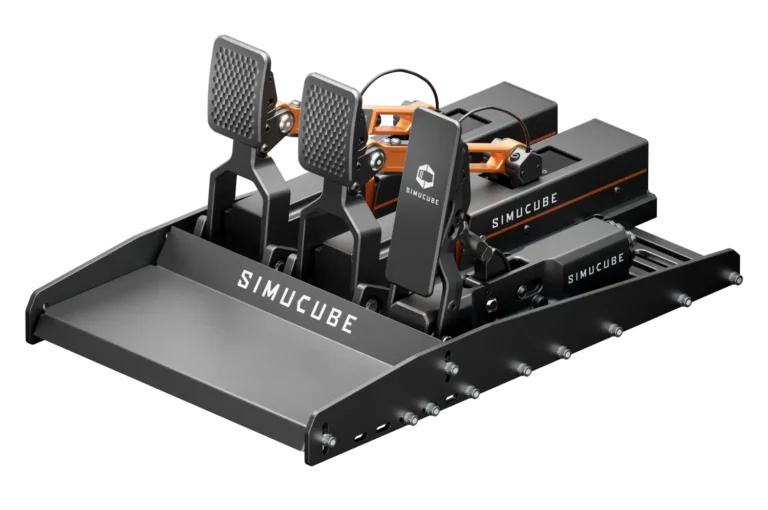

Simucube ActivePedal Pro SET
Current Price
- ActivePedal Pro Brake
- Co-Pilot Throttle
- Baseplate
- Link Hub
Steering Wheel:

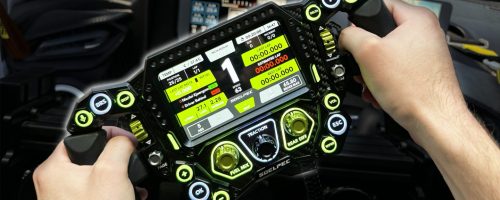

Soelpec Spectra XR
The SOELPEC Spectra XR is my pick for this Ultimate build because it delivers the full luxury-wheel experience: feature-rich, outstanding build quality, and it has quickly become one of my go-to wheels.
A big part of its appeal is the combination of a 302mm diameter and a 5” touchscreen display, which makes it unusually versatile for both Formula and GT racing, while giving quick, easy access to a huge range of inputs.
At this level, though, there are so many genuinely exceptional luxury wheels on the market that it stops being a purely rational decision. The differences are often more about design philosophy and the specific features you personally value than any objective performance advantage. In that sense, choosing a wheel becomes more like choosing a piece of art — it needs to appeal to you. Go with your heart, because you’re going to be looking at it a lot
More Sim Racing Wheels
COCKPIT Considerations:
Tubular Steel Cockpits
When you talk about the best that money can buy, most people assume you’re going straight to an aluminium profile cockpit. But there are some genuinely high-end tubular steel cockpits that perform well and may appeal on aesthetics alone.
Just be aware of the trade-offs. Compared to profile, you’re typically giving up rigidity and adjustability, and you’ll have fewer straightforward options for mounting accessories and adding hardware over time.
Fanatec ClubSport GT Cockpit – Detailed Review
Cooler Master Dyn X Sim Racing Cockpit – DETAILED REVIEW
PlaySeat Trophy Sim Racing Cockpit Review
Aluminium Profile Cockpits
Aluminium profile rigs are the gold standard for rigidity and adjustability. Built from extruded aluminium sections, they allow near unlimited fine tuning of wheel position, pedal placement, seat mounting, shifter mounts, and accessories.
They are the most future-proof option. If you plan to move to higher torque wheelbases, motion systems, or heavy hydraulic pedals, this is the platform that will handle it without complaint.
The trade-off is size, cost, and permanence. They take up space and are not something you casually move around the house.
At the end of the day, the right cockpit is the one that matches your space, budget, and long-term plans. The more rigid the platform, the more performance you unlock from your hardware.
Sim-Lab P1X Pro Cockpit Review
Next Level Racing F-GT Elite 160 – Review
Advanced Sim Racing ASR-4 Cockpit Review
